Printed Flight Plan Options

A new feature that appeared in AvPlan EFB version 6 is the ability to control certain aspects of how your printed flight plan is presented.  Let’s have a look at how it’s done and what options there are…

Firstly, build a new flight plan (….or with an existing flight plan open), tap Planning > Domestic Flight Plan Form.  (Make sure you have at least one waypoint in your flight plan before tapping this option)

IMG_2148

Then, tap the Options button in the top-right corner.

IMG_2149

A menu will appear with some options:

  • Double Spaced:
    • Adds a space between each leg within the flight plan.  This could allow you to add your own figures, or notes to the legs using pen or pencil.



  • Stage Headings:
    • Adds an extra line with a clear subheading outlining the beginning of each stage (Look for “STAGE # DETAIL”). An excellent option if you plan multi-stage flights.



  • Flight Levels:
    • This option toggles between expressing your planned altitude as a raw number or as a flight level (e.g. 25000 feet would be expressed as F250, or 7500 feet would be A075).



IMG_2151

Once you’ve been in and set these options to your requirements, AvPlan EFB will remember them for future flight plans.  No need to change them each time!

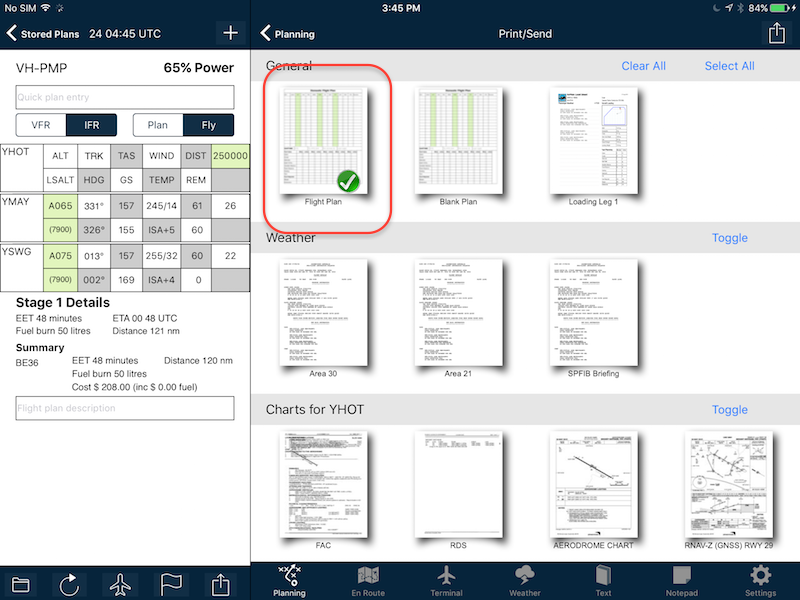

IMG_2152

To then print your flight plan, tap Planning > Print/Send.  Make sure at least the Flight Plan is selected with a green tick, then tap the send button in the top right hand corner to send to printer or create an email with the flight plan attached as a PDF document (which you can email to yourself, open on your desktop computer and print from there).
